SWIVEL JOINTS

Swivel joints use hardened precision ground ball races and stainless steel seal faces to promise its long life.



LA-DCL
The double counterweight Marine Loading Arms is fully Balaned in all position
Used for:oil and chemical products
Handle type:manual and hydraulic

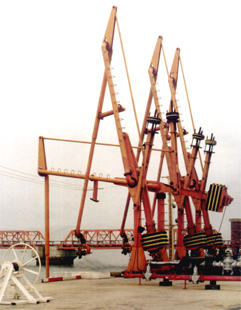

LA-DCL PORT LOADING ARMS

LA-DCL Port Loading Arms is connecting Link structure type.It is fully balanced in all position.Arms is lighter and can be used in new and old jetty.
LA-DCL Port Loading Arms is designed to be both maual and hydraulic type.
Size:6" 8" 10" 12" 16"

Standard design incorporates:
  • All steel construction
  • Low torque swivel joints provide easy handing
  • Mechanical parking locks
  • Handing lines(only for manual type)
  • Two separate balance system
  • High flow rates at low pressure drop
  • Seal Material:--Nitrile
                             --Viton
                             --PTFE

Auxiliary Accessories:
  • Alarm system
  • Insulating flange
  • Manual Vacuum breaker
  • Automatic Vacuum breaker


LA-DCL PORT LOADING ARMS
