Platform Stepladder

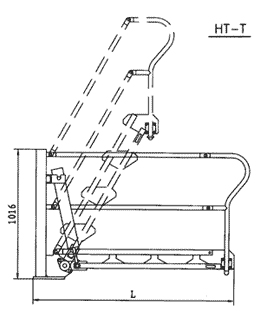

Structure Type: Main model (HT-T)

Standard Design: 3-Step 4-Step 5-Step For other diameters please consult us

Description: the Stepladder can be mounted onto Platform of Truck or Railcar and ensure
Safety when Operator walk from Platform to Truck or Railcar.

Main Feature:

1. Adopt Spring balance Mechanism to ensure Stepladder working Free
2. Either Angle into working range the Step-plate is always Horizontal state
3. Double sides Handrail ensure to walk Safety and Reliability
4. Double system Fixed Mechanism
5. the Step-plate is roofed against rust
6. Fixed Simply and Lightly


Standard Size:

3-Step: L=940mm
4-Step: L=1270mm
5-Step: L=1600mm
